The first IBOS car system with HD image quality. As with the analogue IBOS CamBoss, you can benefit from the modularity of the system and combine different types of camera heads, crawlers, cable drums and control units, but with more advanced software and mechanical solutions offering higher performance. Especially for servicing, the absence of optical fibres in the image transmission is an advantage.

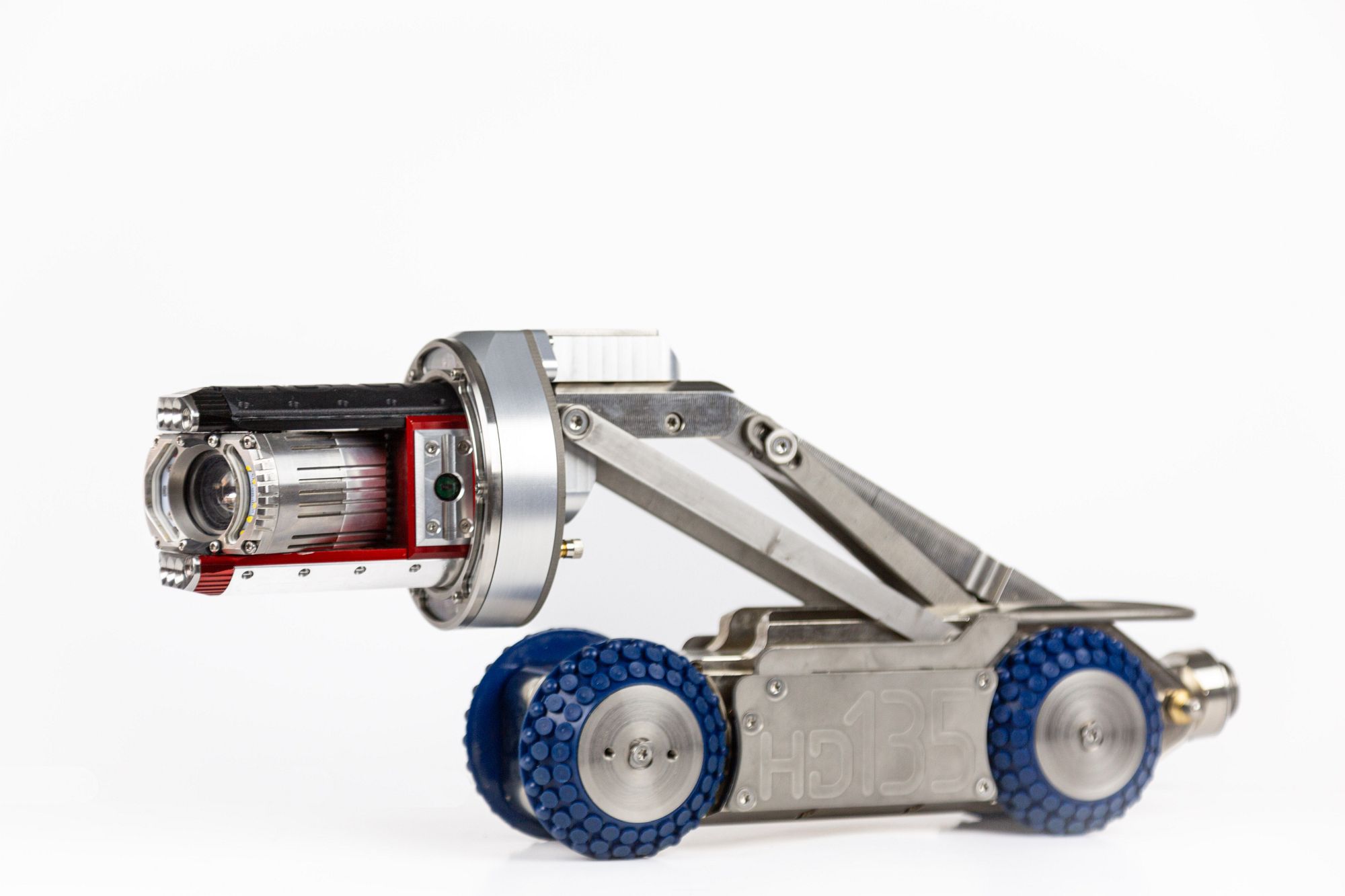

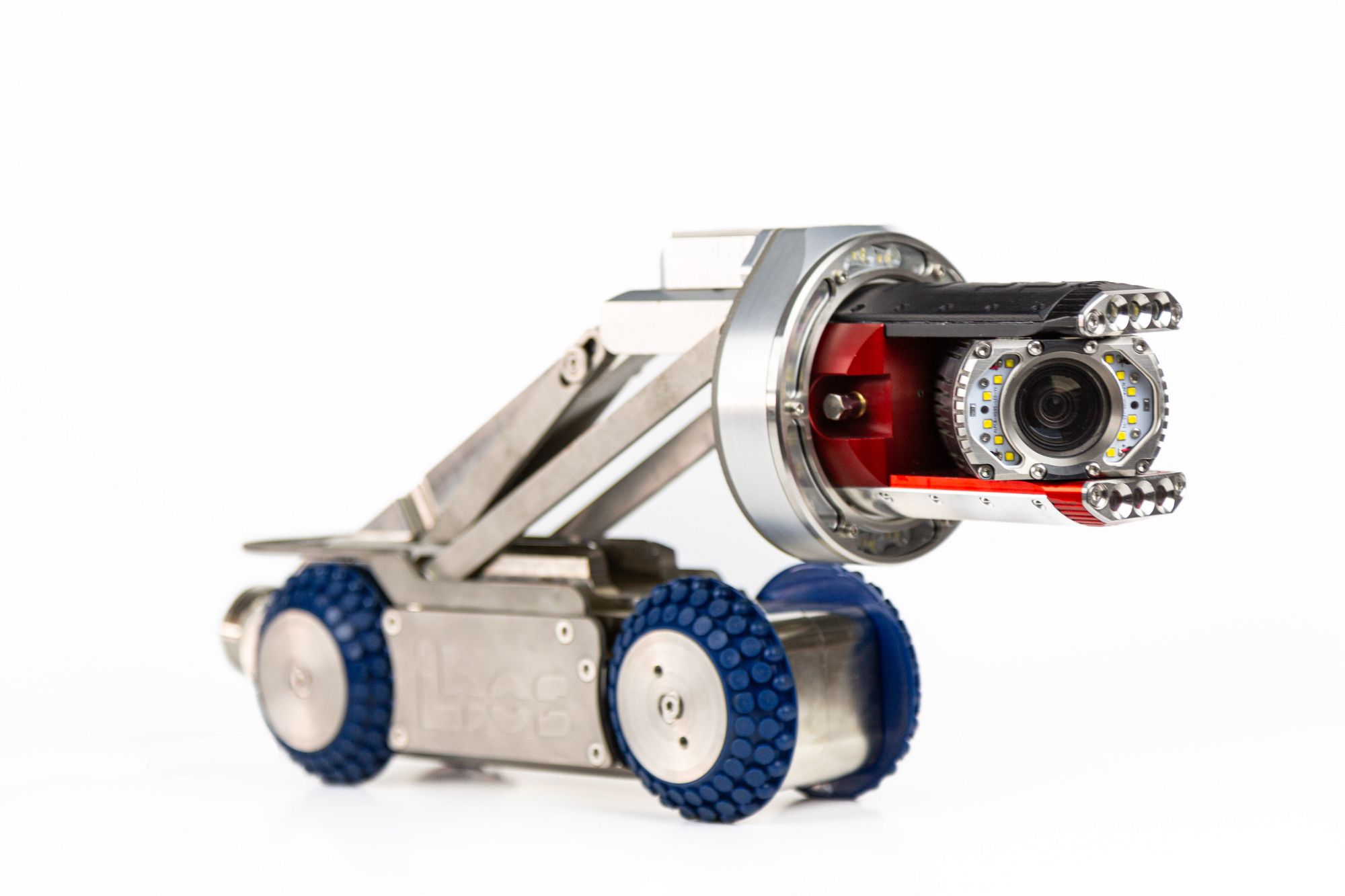

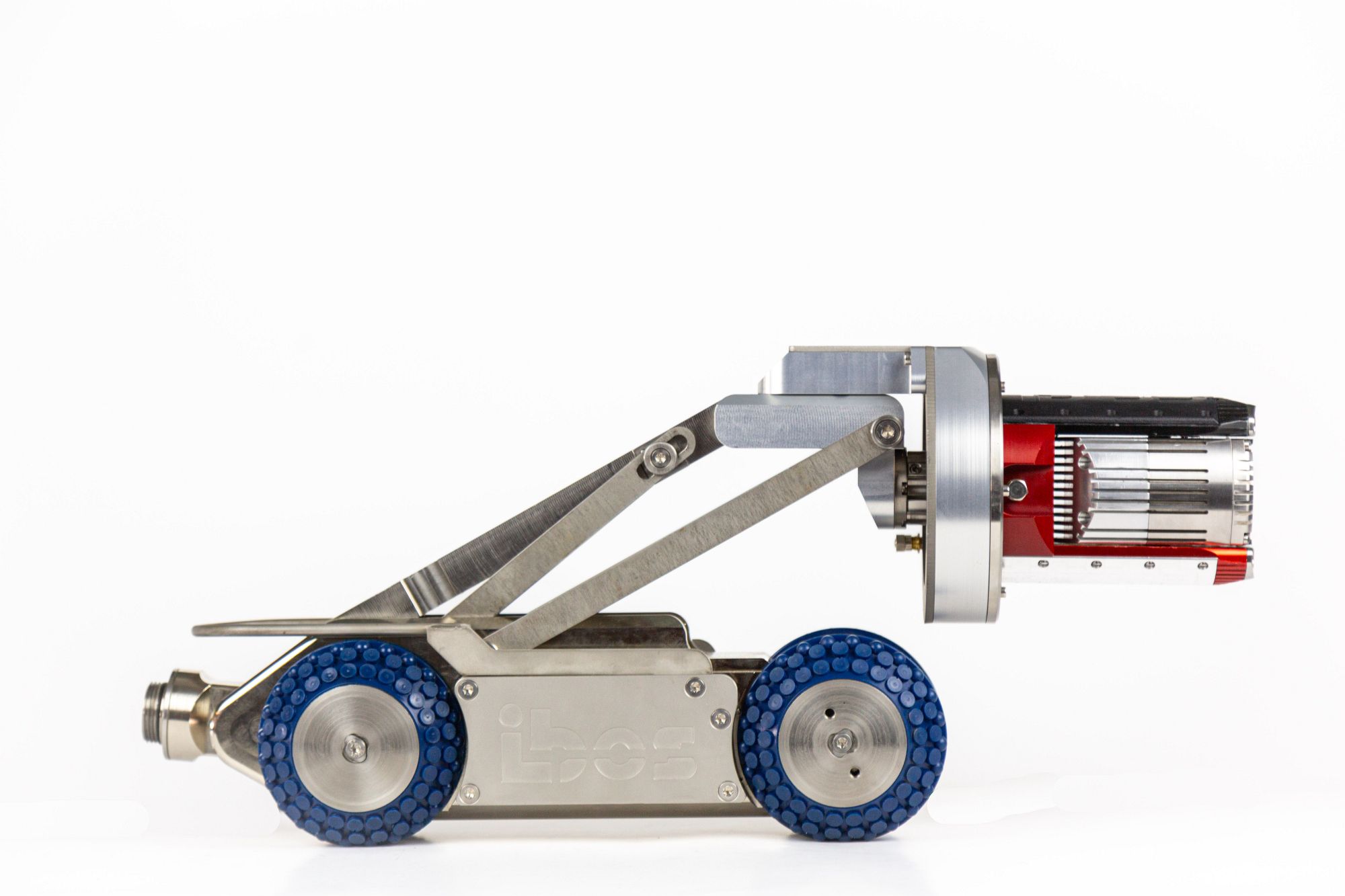

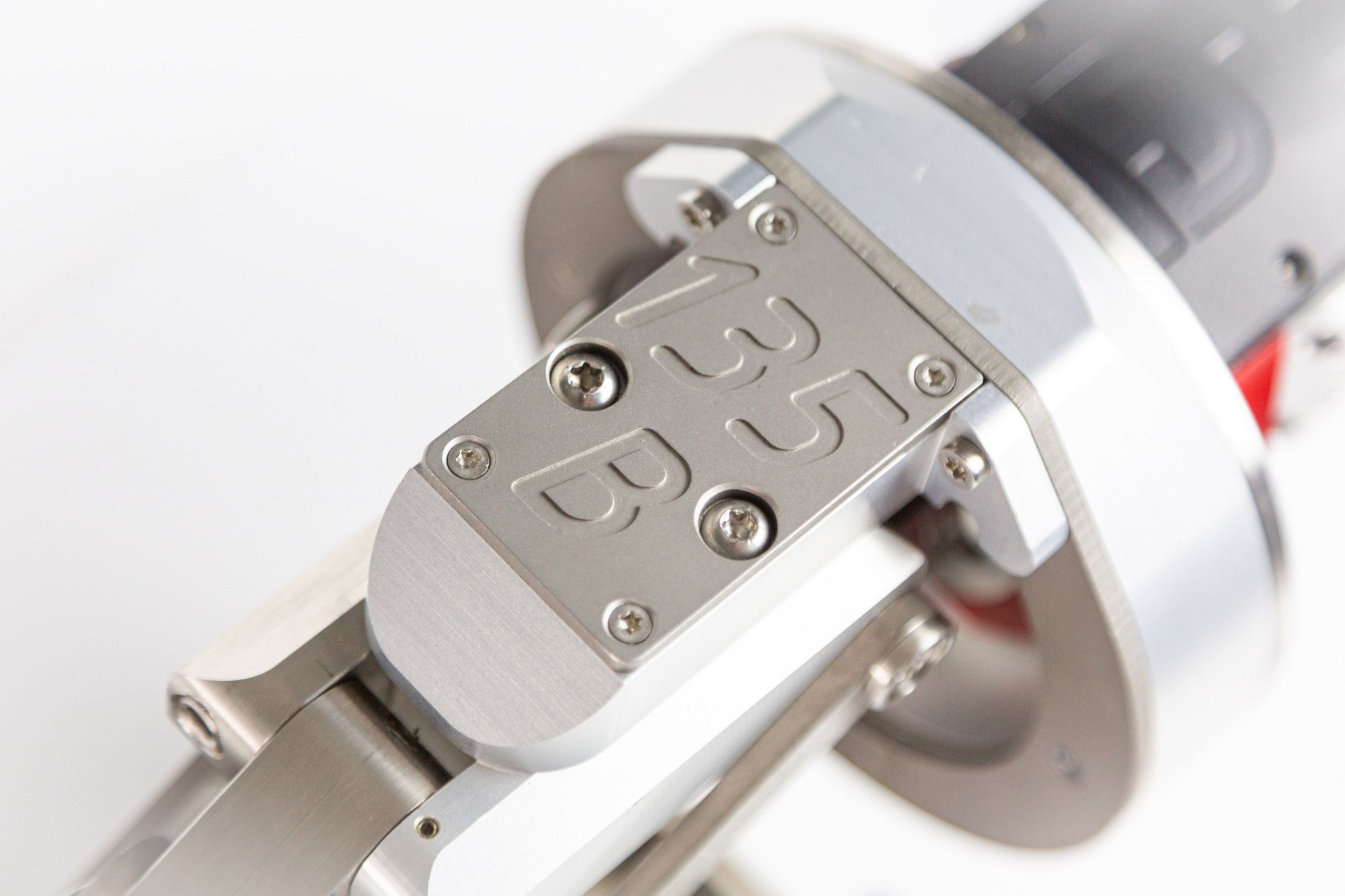

HD CamBoss 135
Chassis:

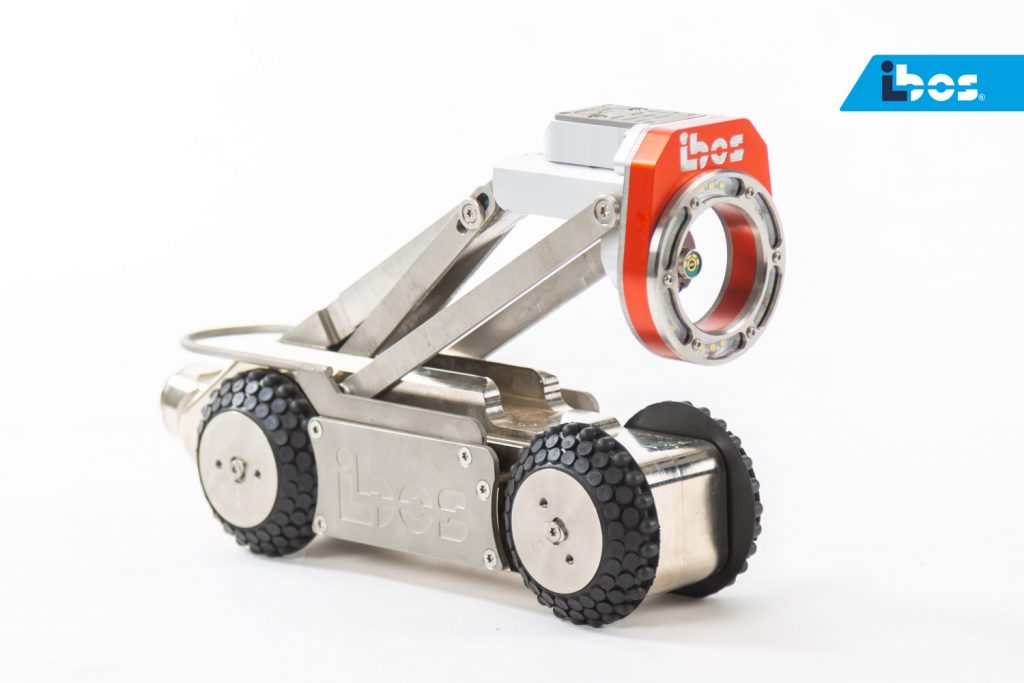

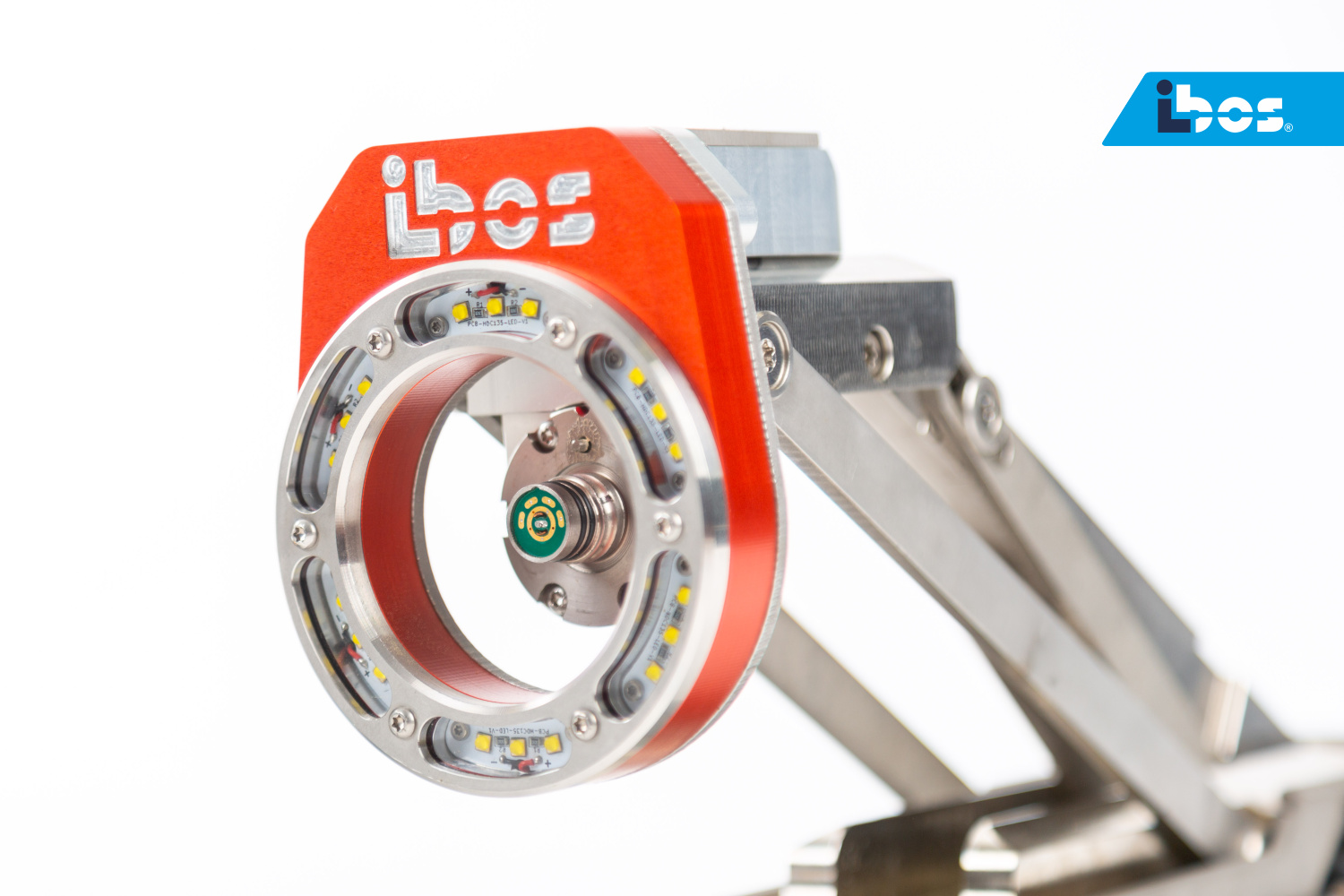

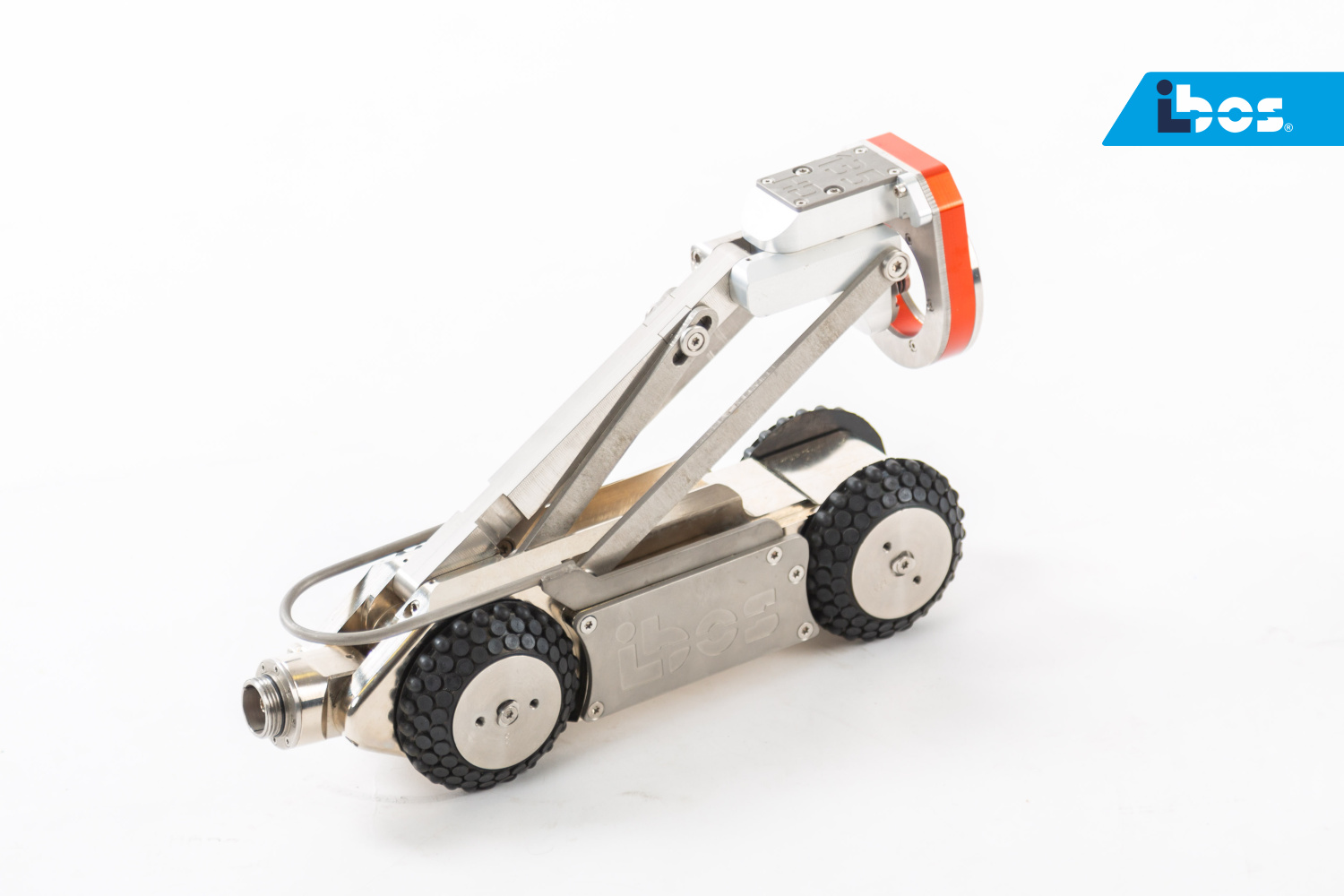

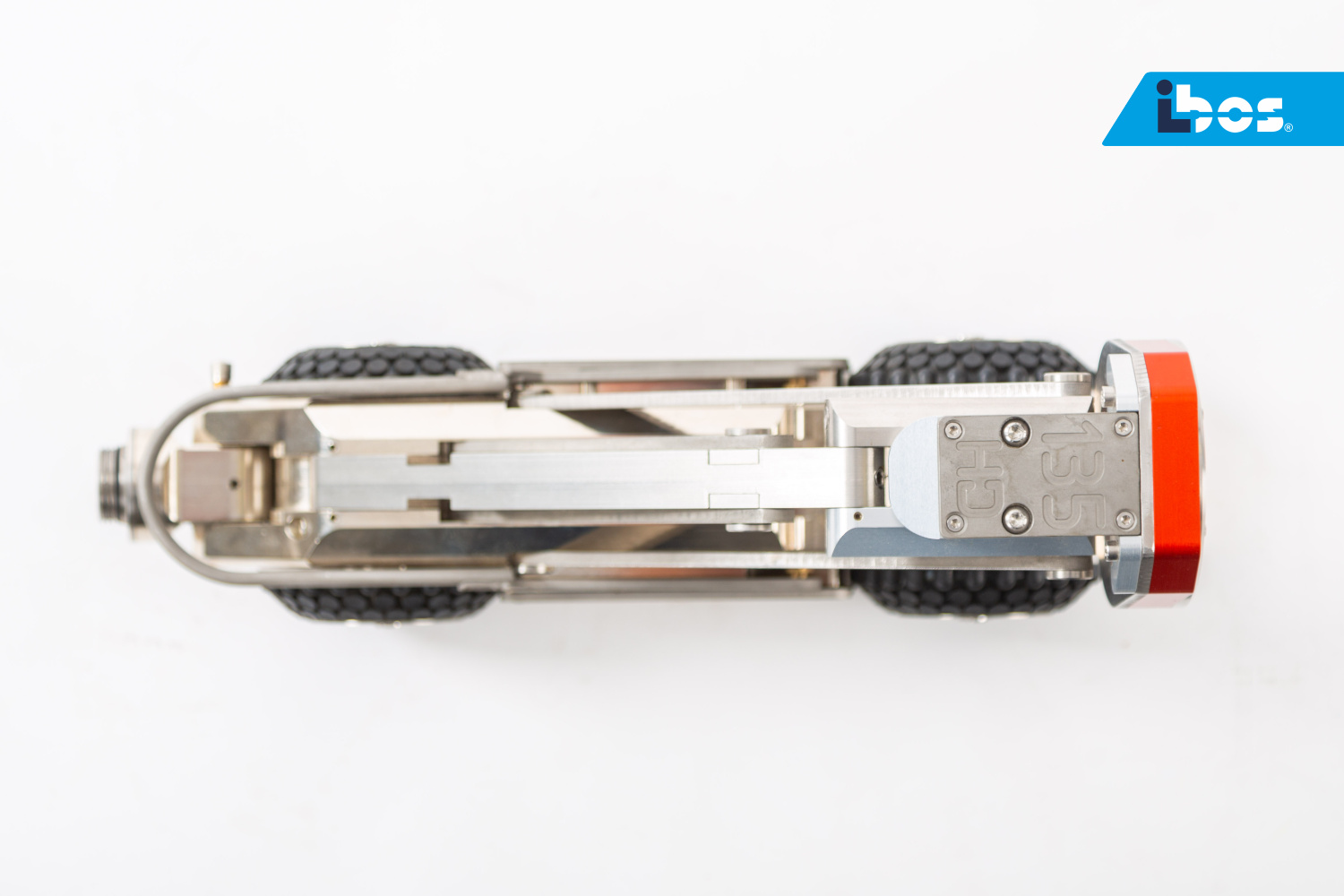

4×4 drive, 1 motor 75W, designed for DN 150 -800, pressure tight to 1 bar, with connector for additional light, 1 set of basic wheels , with manual arm and hook for lowering into shaft. For HD60 and HD95 swivel head camera.
Options: additional lights, wheels for different DN
Camera heads:
HD60 – resolution 1920x108o, light sensitivity 0,01 lux/ F2,5, swivel 2x 105° ( with antenna 2x 60°), 8 x LED lights with cumulative power 4,7 W , auto/manual remote focus, field of view 110°, 12x digital zoom
HD95 – resolution 1920×1080, light sensitivity 0.15 lux/ F1.5, auto/manual remote focus, 110° angle of view, 2 x 110° swivel and 360° rotation (infinity), 12x super bright LEDs – 5.5 W power on swivel head, 6x LEDs with reflectors on fixed head, 6.6 W power . 10 x optical + 12 x digital zoom, 33 kHz probe, lasers
Control Units:
HDBox PRO Battery powered mobile control unit for pipeline monitoring with HD46, HD60 and HD 95 cameras with inspection recording capability using DigiCan software. Intel i5-6300U 2.4GHz CPU, 8GB DDR4 RAM, 250GB SSD hard drive, 12.1″ 1280×800 LCD, touch screen, 1000cd brightness, Windows 10 Home, WiFi, 1x USB 3.0, 1x USB 2.0.
HD PRO Control Unit battery powered mobile control unit for pipeline monitoring using HD46, HD60 and HD95 cameras with the ability to record inspection using DigiCan software. Intel i5-6300U 2.4GHz CPU, 8GB DDR4 RAM, 250GB SSD hard drive (expandable), 21″ 1920×1080 LCD, backlit keyboard, waterproof design, WiFi, 2x USB 3.0, 1x USB 2.0, 1 x USB “C”, battery for min. 2 hours of work
Winches:
will be available with 150 and 300 m capacity: Automatic motorized winch, guide pulley to reduce cable strain, sensor
to measure unwound cable, water splash resistant, max. 150/300 m cable capacity.
OPTION: Wireless “radiocontrol” control allowing control of the trolley and camera
Software: Digican
